Premium Window Series

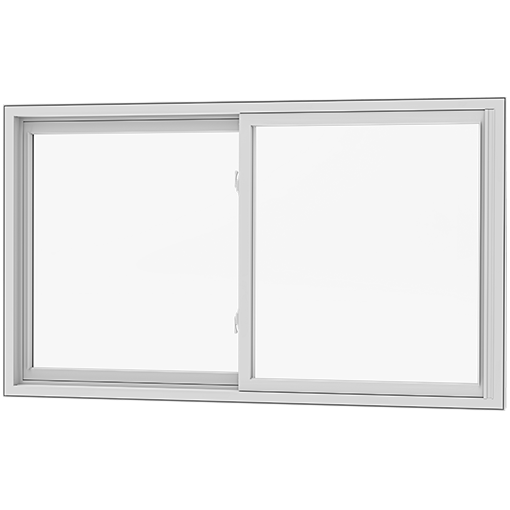

300HS/300BMJ DOUBLE TILT SLIDER

VWD Horizontal Sliding windows are a practical addition to your home. They not only offer an unobstructive view but are a perfect fit for larger openings for any modern or classic home.

VWD Horizontal Sliding windows easily glide from left to right, providing a wide window view with full ventilation. Depending on the area of coverage, choose from a two-lite or three-lite slider that features a large picture window with operable end vents.

UPGRADE
OPTIONS
single
double
even split
bay
bow
A

3 1/4" welded frame combines with a variety of mouldings and extensions

B

Optional integrated BMJ features integral Brickmold with Nail Fin on frame (not available on coupled windows)

C

7/8" Overall sealed units

D

Forced Entry locks are an available option

E

"Separate draining system for the interior half of the window from the main exterior drainage system. All drain holes have air resistant flaps"

F

All channels are covered with easily washable, removable vinyl covers for a lustrous, finished appearance

G

Fullscreen of heavy-duty material; the Extruded half screen is available

H

Sash tilts in for easy cleaning and easy removal

I

Pull Rail is integrated into the sash, not to a glass stop for strength and ease of operation

Multi-chambered, fusion-welded frame and sash
Excellent for thermal resistance and prevention of heat loss. VWD Windows are extruded in 3 ¼” frame depths for extra rigidity, strength and thermal properties and are used in Replacement and New Construction Applications

Metal Reinforced – Built to last.
The window’s structure is reinforced at the operator, keeper and along the sash stile.

Rust Resistant Fasteners and Hinges
Stainless steel screws and rust resistant hinges are designed for a lifetime of use.

Foam “warmware”
Offered as an option, polyurethane foam insulation is injected into the frame and sash of each window.

Attachments:
The 300 Tilt Slider frames feature 3 1/4” standard frame depth for retrofit installations.

Double Hung BMJ Window Frames
Offer an excellent value with a unique structural approach to resolving the need for exterior accessories with any cladding choices.

It adds structure to the window and, as it is an integrated part of the window frame, eliminates the need to seal the juncture between the frame and a brick mould. The BMJ is an alternative to brick mould or siding J trims.

Argon and Krypton Gas filling
Maximize the insulation value of your sealed unit with your choice of Argon, Krypton and Krypton/Argon blend.

Commercial Glazing Technique
Exterior glass stops, combined with the Double Bond Glazing, are more effective in
maintaining a well-sealed window.

Double Glazed System (7/8” Overall)
Features a flexible dual durometer seal that hugs the sash glass from both sides, this system also includes a glazing tape applied to the interior side resulting in an unprecedented barrier against air and water penetration.

Triple Glazed (1 3/8” Overall)
Features two ½” airspaces that will dramatically improve the performance of your windows by reducing heat loss and conserving energy, for an even better performance upgrade to Double Low E & Argon.

TempSmart™ Spacer
It is a flexible, U-shaped, silicone foam tape product used to wrap around and cushion our center decorative panel. Featuring a vapor barrier backing, the product used in combination with Hot Melt butyl, provides a superior Warm – Edge seal.

Stainless Steel Spacer
This is a warm edge spacer. This spacer will reduce condensation, heat loss, and provide clean, graceful lines and aesthetically provide an appealing appearance. Because it is made from low conductive steel, it provides natural structural strength in your window. Additionally, because it is steel, it is the perfect barrier preventing moisture penetration or gas leakage.

See and hear the difference with Diamond Premium Glass
VWD’s Diamond Premium Glass is 33% to 100% thicker than industry standards—that’s why it’s called Diamond Premium Glass! What this means is that outside noises stay outside where they
belong, truly making your home a sanctuary. A window with Diamond Premium Glass will withstand much greater impact and will be a better insulator.

Triple Seal
Three layers of premium Fin Seal stop air and water as they reduce sound
transmission. Benefit from the best sliding seals available!

Recessed Tilt Latches
Both sashes tilt in for easy cleaning from inside your home.
Our recessed design maintains a clean and attractive sight
line in your window.

Cam Locks
Heavy duty 180 degree locking cams pull your sashes
tightly together for a great seal!

Smart Lock (Optional)
Smart Locks allow you to both unlock and tilt your sash
with a single operation.

Quick Lock Shoes
When you tilt your sash for cleaning, a secure locking
action from multi-directional shoe
expansion break-points secures
the sash in place.

Hinged Drain Covers
Designed to keep bugs out while
allowing water to flow to the
outside.

300HS Performance Ratings

  • Class R-PG30
  • Air Infiltration/Exfiltration: A3
  • Forced Entry Resistance: Pass at Grade 20
  • N.F.R.C. Certified
  • A.A.M.A. Certified
  • C.S.A. Certified
